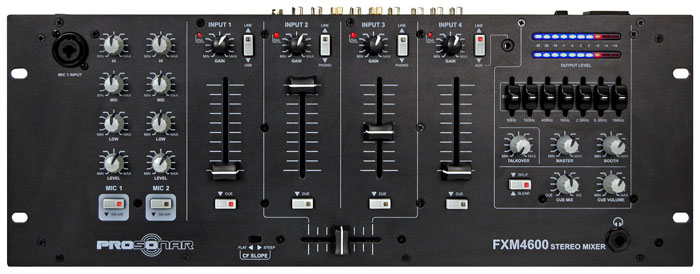

FXM4600USB

The FXM4600 Stereo Rack Mixer perfectly drops into any application where the ease-of-use is the prevalent requirement – whether in a waiter-operated bar/pub installation, a dance school, a fitness club or in small rental systems. With as little as possible controls on its surface, it still does not lack anything needed to deliver an outstanding sound experience. Two microphone channels with 3-band EQ and adjustable talkover allow flawless vocal performances, 4 stereo channels with a crossfader and master EQ deliver the right mix of music, and two separately adjustable master outputs provide professional connectivity. A plug-and-play solution for anyone who does not want to read a user manual before running an event!

FEATURES

2x switchable Phono (Line)/Line inputs
1x switchable Line/USB stereo input
1x switchable Line/AUX input with the AUX input being a front-panel mounted 3.5mm TRS jack (for easy connection of e.g. MP3 players)
All stereo inputs with Gain and peak LED for greatest ease of setting gain
2x Mic inputs (1xtop-panel Combo, 1xrear-panel TRS) with Gain, 3-Band EQ, and “on air” switch
Adjustable Talkover for mic inputs (damping – sensitivity on rear)
Smooth dual-rail 60mm channel faders
Smooth dual-rail 45mm crossfader with switchable curve “flat”/”steep”
Master section with 7-Band EQ, level control and dual level meter
Additional booth output
PFL section with PFL/Main mix control and Blend/Split option
Powerful headphones output with 6.3mm stereo jack

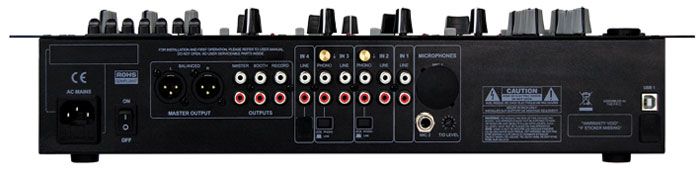

Balanced and unbalanced main output
Unbalanced record output
Compact 19”/4U form factor
CE/ROHS compliant

USB OPTION

Two USB options are available for the FXM4600USB:

Twin-USB option with two USB inputs which can be assigned to channels 1 and 4 (model code FXM4600USB-T)
Single-USB option with one USB input which can be assigned to channel 1 (model code FXM4600USB-S)
