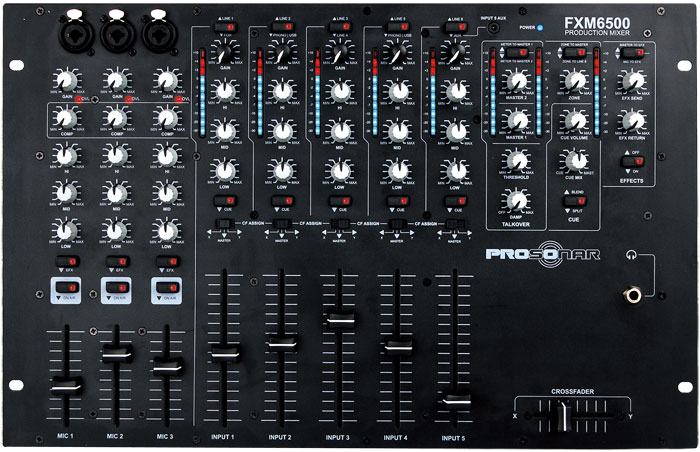

FXM6500

The Prosonar FXM6500 Production Mixer is the result of in-depth research into the needs of mobile DJs, event venue operators and rental companies. The unique feature set is specifically designed to cater for events where vocal presentations are mixed with music. As the only mixer of its kind, the FXM6500 sports one-knob compressors in its 3 microphone inputs. Aside from a full feature set per channel, the FXM6500 also offers a multitude of outputs with a unique zone feature for its 3rd output and an in-built subwoofer output with active crossover. An in-parallel routed effects path can be assigned to either the microphone or the music bus. Last but not least, a 2-parameter adjustable automatic talkover makes this mixer the most versatile mixer in its field.

FEATURES

3x switchable Line/Line inputs
2x switchable Line/Phone (USB if fitted) inputs
All stereo inputs with Gain, 3-band EQ (+12/-26dB) and 10-LED level meter for greatest ease of setting gain
One stereo input with front-side 3.5mm TRS jack for easy connection of e.g. MP3 players
One rear-side balanced FOH stereo input (6.3mm stereo TRS) to connect sub-mixers
3x Mic inputs with Combo connector, Gain control, Peak LED, One-knob Compressor, 3-band EQ, Effects assign switch, and “On air” switch
2-parameter adjustable Talkover for mic inputs
Smooth dual-rail faders (60mm/100mm mic/stereo inputs)
45mm assignable dual-rail crossfader
PFL section with PFL/Main mix control and Blend/Split option
Master section with two separately controllable outputs and assignable dual level meter
Balanced (XLR) and unbalanced main outputs, Master switchable to Mono
Balanced (XLR) mono subwoofer output with internal active crossover (crossover frequency adjustable 30-200Hz)
Additional balanced (XLR) mono Zone output (with switchable 80Hz HPF) which can routed to the master bus or CH5 line input
All outputs with rear-side maximum level setting controls
Effects section with parallel routing, assignable to mic or master bus with adjustable send/return levels
Effects Send/Return connections via 6.3mm stereo TRS connectors
Powerful headphones output with 6.3mm stereo jack
Unbalanced record output
CE/ROHS compliant

USB OPTION

A 4-channel-USB option with low-latency ASIO drivers and 24Bit/96kHz replay is available for the FXM6500 and can be assigned to channels 2 and 4 (FXM6500USB-T)
